​​​​DRTBH (MIL-DTL-24308 Type) Bulkhead D-SUB Connector

Request a Quote

DRTBH (MIL-DTL-24308 Type) Bulkhead D-SUB Connector

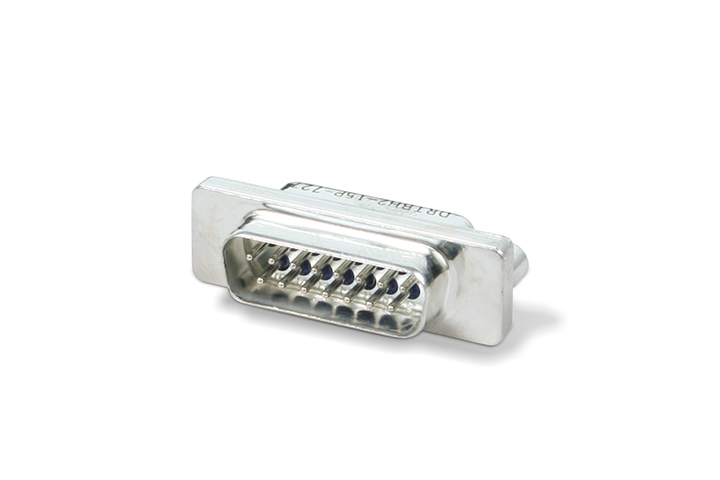

DRTBH-15P
DRTBH-25P

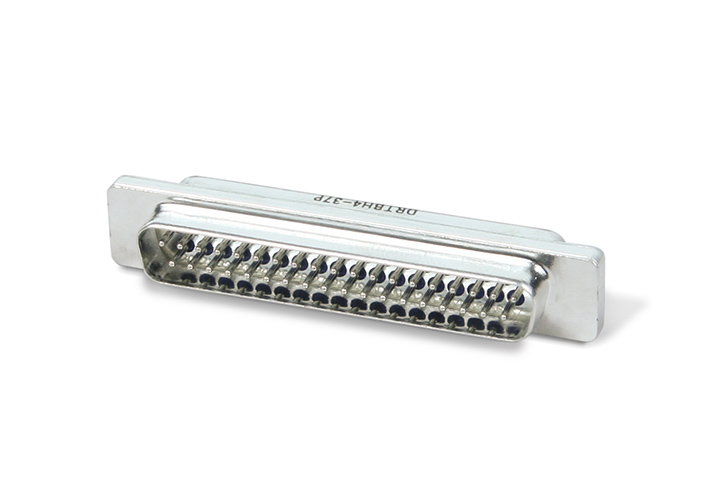

DRTBH-37P

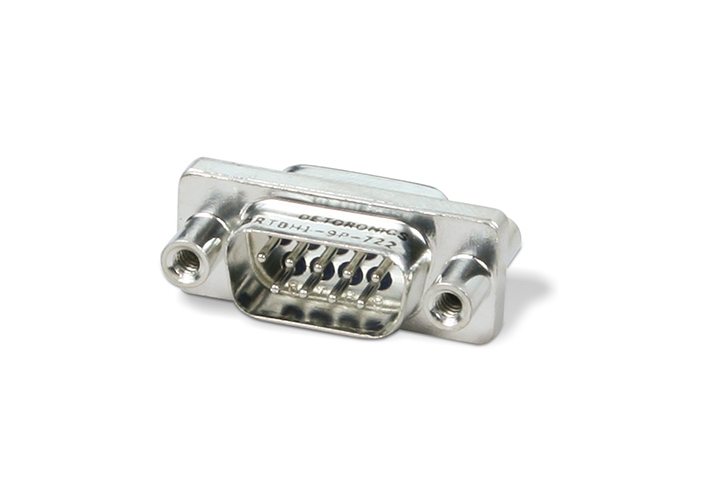

DRTBH-9P
​Selection

  • Shell Sizes 1 through 5

  • Insert Arrangements Per MIL-STD

  • Available With Mounting Posts or Through Holes

  • ​Engages with Mating Plug on Both Sides

Finish

  • Fused Tin Plated Shell and Contacts

  • Other Finishes Available – Please Consult Factory

Technical Specification

  • ​MS 18272-1 (9 Pin)

  • MS 18272-2 (15 Pin)

  • MS 18272-3 (25 Pin)

  • MS 18272-4 (37 Pin)

  • MS 18272-5 (50 Pin) - Not Pictured

​(Mates with standard mating plug on both sides)

pdf-download

​Technical Specifications
pdf-download

​Panel Cut Out Specifications
  • Modifications available
  • ​​Guaranteed mateability
